Solution proposal prepared for buyers and project engineers sourcing battery-powered three-phase and single-phase mobile power for the French market.
1. Requirement Analysis: French Electrical Parameters
French industrial and commercial sites commonly draw power from two standard supply points:
Three-phase 400V / 32A (CEE connector) — approximately 22kW of power, the standard hookup for construction site distribution boards, industrial equipment, LED large-screen systems and workshop machinery.
Single-phase 230V / 32A — approximately 7.4kW of power, used for higher-draw single-phase loads such as catering equipment, small workshop machines and media production equipment.
A mobile battery power source that must replace or back up these connections therefore has to deliver clean sine-wave AC at 230V/50Hz (single-phase) and 400V/50Hz (three-phase), with sufficient continuous output and a path to scale for longer operating windows. All output ratings quoted below are taken from DRIVELONG product documentation on record; items not yet confirmed in documentation — such as the exact socket standard fitted at the factory — are listed as confirmation items in Section 5 rather than presented as fixed specifications.
2.
Recommended Products and Configurations
DRIVELONG (Suzhou) manufactures LiFePO4 portable and mobile power stations for B2B and OEM/ODM customers. Based on the French parameter set above, we recommend the following three models, none of which involve fuel-based generation.

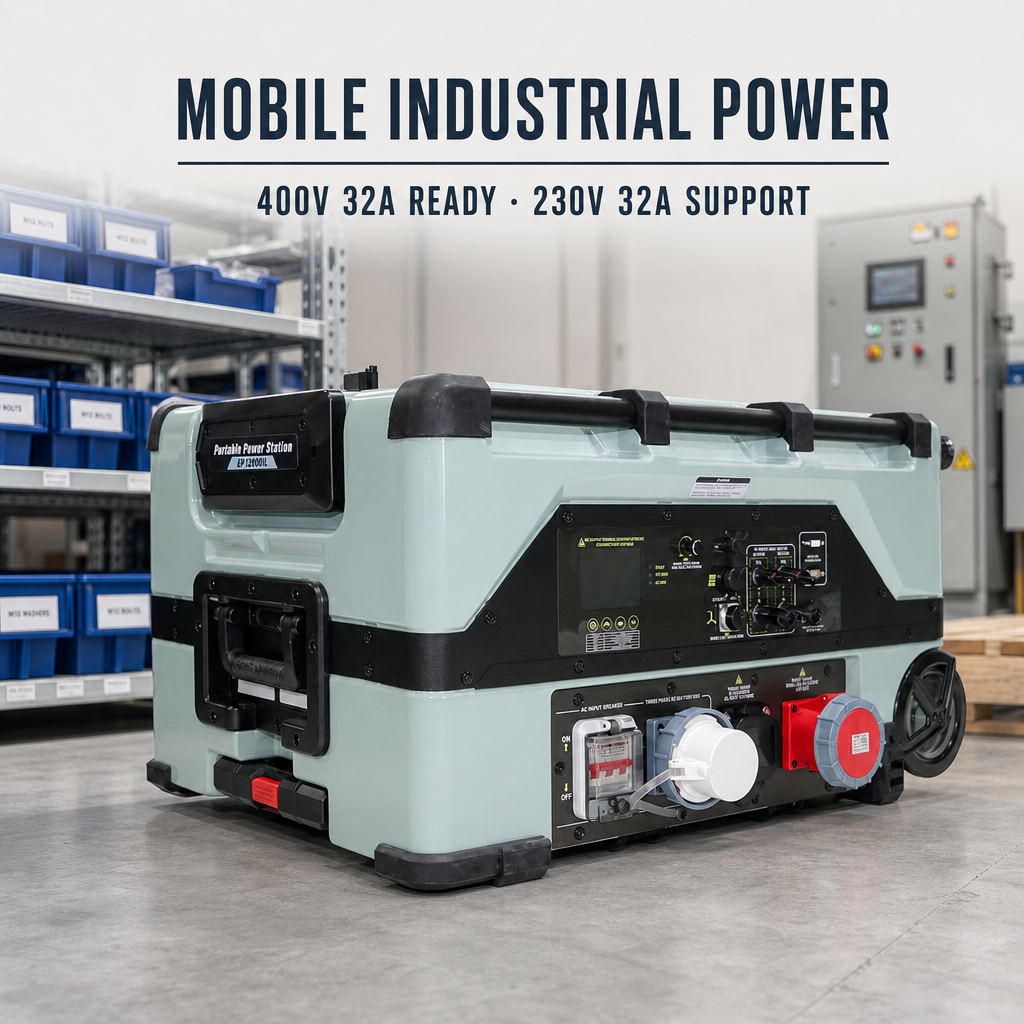

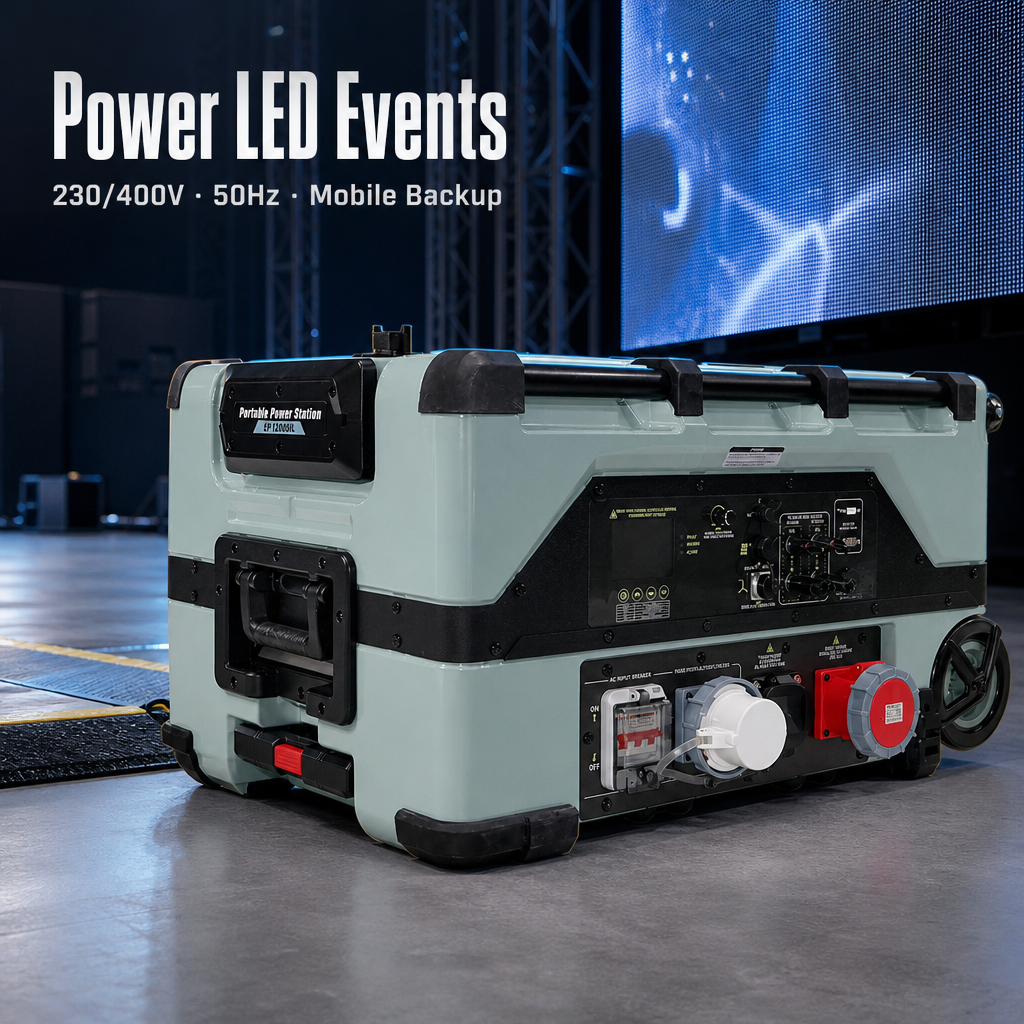

Core model: EP12000iL Flagship High-Power Mobile Power Station
Continuous AC output: 12kW three-phase, 11kW single-phase, 10kW split-phase; 12000VA rated / 24000VA peak power.
Battery: 7680Wh LiFePO4, expandable with up to 31 extra battery packs to 372kWh total.
Parallel operation: two main units stacked support parallel continuous output of up to 24kW.
Built-in 22kW EV charger; full charge in about 70 minutes from utility, high-voltage or low-voltage solar, EV charger, driving car, AC generator or wind turbine input.
5-year warranty.
Fit to the French requirement: a single EP12000iL delivers 12kW of three-phase output, which covers the majority of 400V three-phase site loads. For applications that must draw the full 400V/32A (about 22kW) continuously, the documented dual-unit parallel configuration with up to 24kW of parallel output is the matching approach. The exact output balance between the three-phase and single-phase sides in this dual-unit setup should be confirmed with DRIVELONG engineering against your load schedule before ordering (see Section 5).
Product page: EP12000iL Flagship High-Power Mobile Power Station
Single-phase tier: EP5000iL Smart Mobile Power Station
Rated AC output 5000W (10000W peak); single-phase rated voltage 220/230/240V, 50/60Hz pure sine wave.
Battery 3430Wh LiFePO4, expandable to 109kWh with up to 31 extra battery packs.
Two units stacked in parallel give 10kW continuous output with no additional parallel kit required — the documented configuration for a 230V/32A (about 7.4kW) feed.
UPS transfer time ≤10ms; IP53 unit / IP66 battery pack; built-in EV charger replaces a 7kW charging pile when stacked.
RoHS, CE and UN 38.3 certified; 5-year warranty.
Product page: EP5000iL Smart Mobile Power Station
Supporting tier: BP3600 Portable Power Station
3600W rated / 7200W peak output; rated voltage 100/110/120V and 220/230/240V, 50/60Hz pure sine wave (THD<3%), five AC output sockets rated 10/16A.
3430Wh LiFePO4 battery; 2400W MPPT solar input; charges to 80% in one hour from AC, solar or smart generator input.
UPS function with transfer time ≤10ms; IP53 unit / IP66 battery pack with automatic fire suppression.
RoHS, CE and UN 38.3; 5-year warranty.
The BP3600 covers distributed single-phase loads below the 32A tier — LED screens, media and broadcast equipment, tool charging stations — and can serve as an uninterruptible bridge for critical devices while the larger units handle the main feed.
Product page: BP3600 Portable Power Station
3. Powering Scheme for French Sites
Full three-phase site feed: two EP12000iL units in parallel (documented parallel output up to 24kW) connected to the site distribution board, sized to the 400V/32A inlet; single EP12000iL for loads within 12kW.
230V/32A single-phase feed: two EP5000iL units stacked in parallel (10kW continuous, no parallel kit needed).
Distributed loads and UPS duty: BP3600 units for LED, media and workshop equipment, keeping sensitive devices alive through supply transitions with ≤10ms transfer.
Recharging: all three models recharge from the French 220–240V grid; EP12000iL also accepts high- and low-voltage solar input and recharges fully in about 70 minutes, which keeps battery-backed operation viable across multi-shift schedules.
4. Compliance and Certification Notes
Documented certifications on the recommended models: RoHS, CE and UN 38.3 (UN 38.3 covering lithium battery transport), with a 5-year warranty.
Output waveform is pure sine with THD<3%, suitable for LED drivers, media equipment and motor loads.
Items to be confirmed for your specific French installation before final order: the factory-fitted AC socket standard (for example French-type or CEE industrial connectors), the RCD/earthing arrangement of the output distribution, and any additional EU market-access testing you require. These will be confirmed by DRIVELONG engineering during the OEM/ODM quotation process; they are not stated in the current product documentation and are therefore not presented here as fixed features.
5. Next Step: Request a Quotation
DRIVELONG is an OEM/ODM manufacturer serving wholesale distribution and industrial equipment partners. To receive a firm configuration and quotation for the French 400V/32A and 230V/32A requirement, send us:
Your load list with expected continuous power per phase and peak inrush loads.
Target runtime per charge and daily operating hours.
The inlet/connector types used on your sites and any additional certification requirements.
Our engineering team will confirm the parallel configuration, socket standard and certification scope, then provide a formal quotation. Contact DRIVELONG through the inquiry form on this site or reply directly to this proposal.
