1 / 5EP12000iL Flagship High-Power Mobile Power Station
Flagship 12kW mobile LiFePO4 power station with 7680Wh capacity, 372kWh stackable expansion, 24kW parallel output, built-in 22kW EV charger and 70-minute full charge.

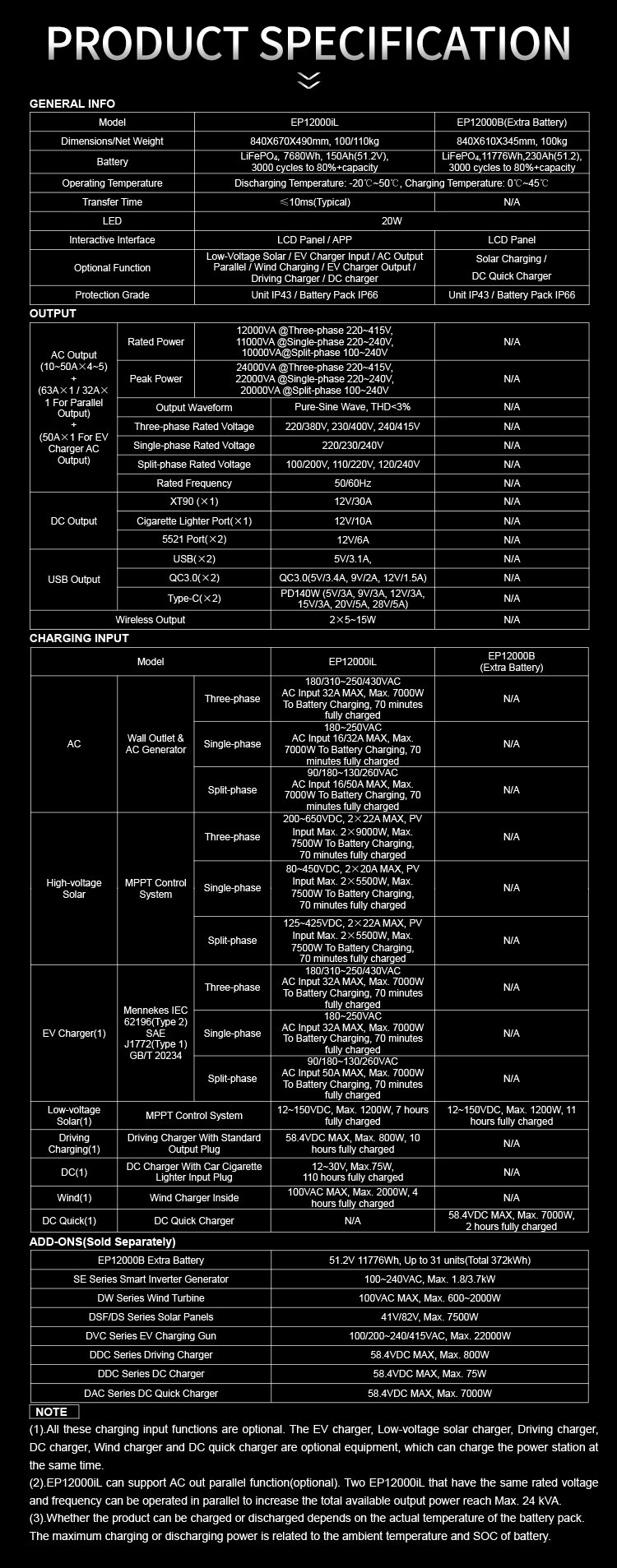

Specifications
| Rated Power | 12000VA |
|---|---|
| Peak Power | 24000VA |
| Battery Capacity | 7680Wh |
| Battery Type | LiFePO4 |

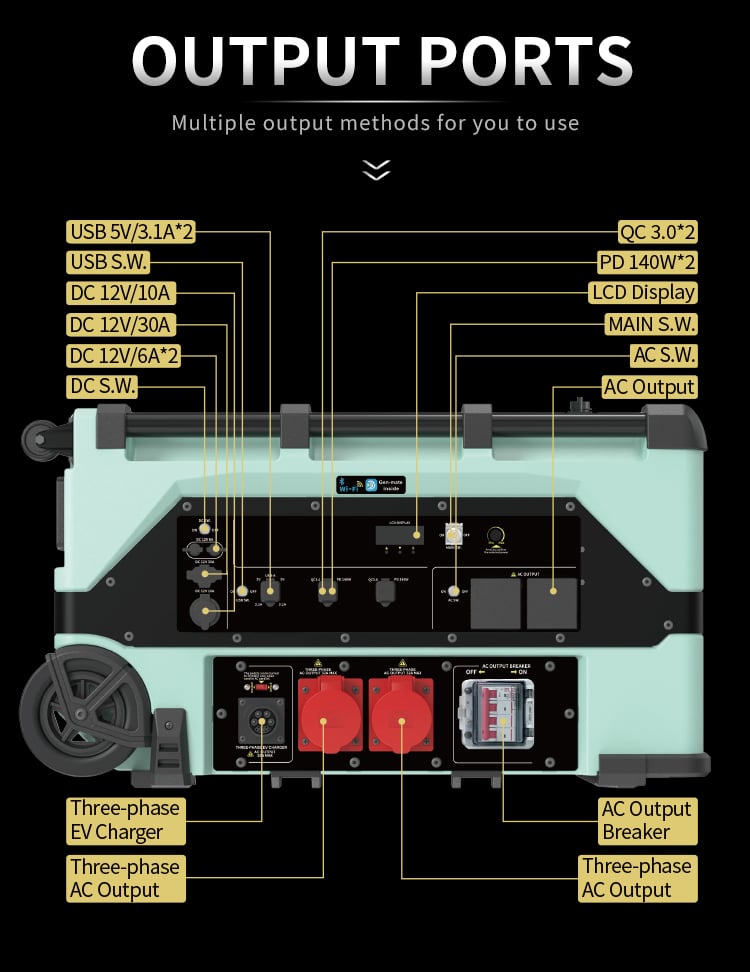

| Output | 12kW three-phase, 11kW single-phase, 10kW split-phase |
| Expansion | Up to 31 extra batteries (372kWh total) |
| Parallel Output | 24kW max |
| EV Charger | Built-in 22kW |
| Fast Charging | Fully charged in 70 minutes |

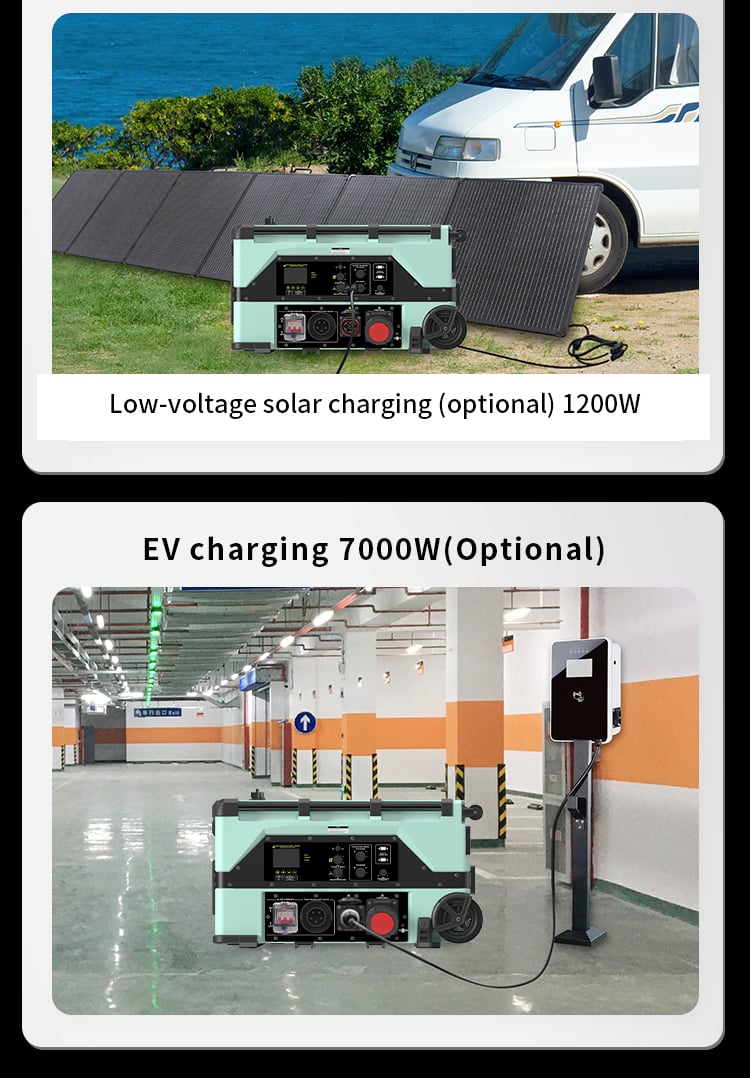

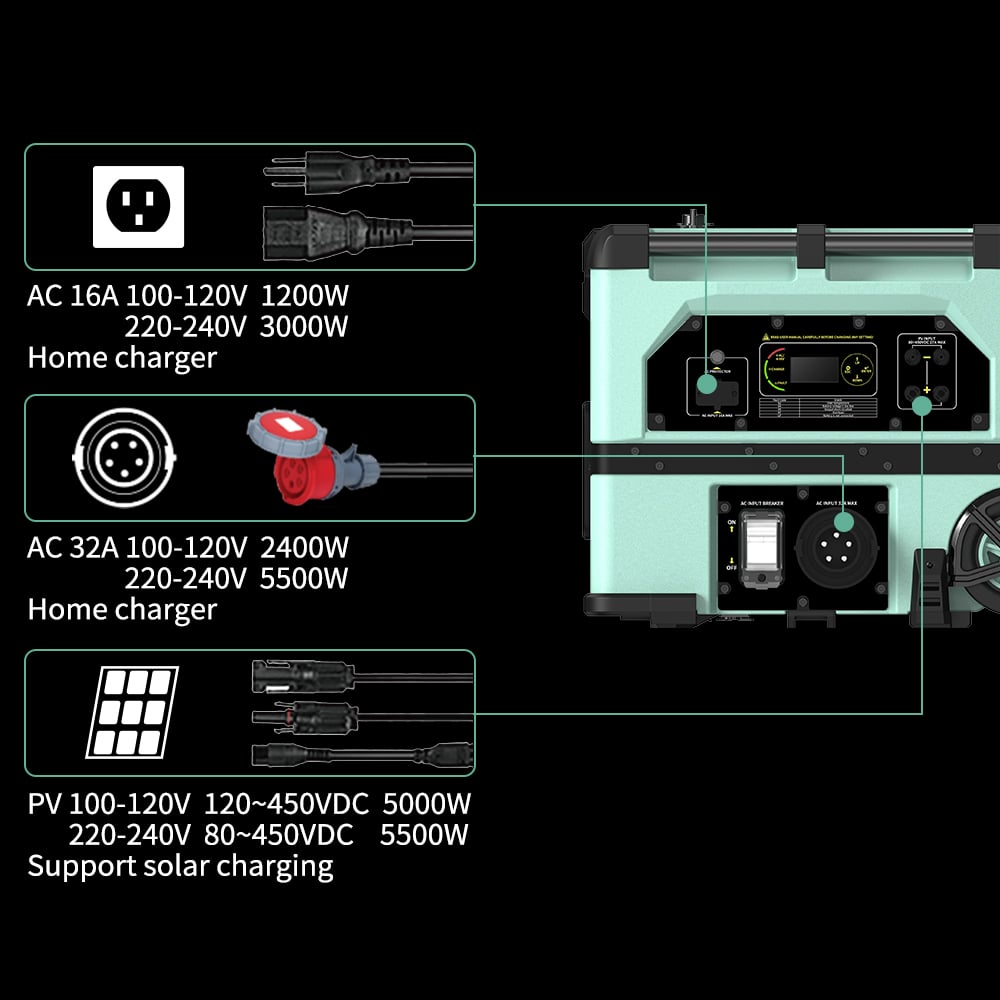

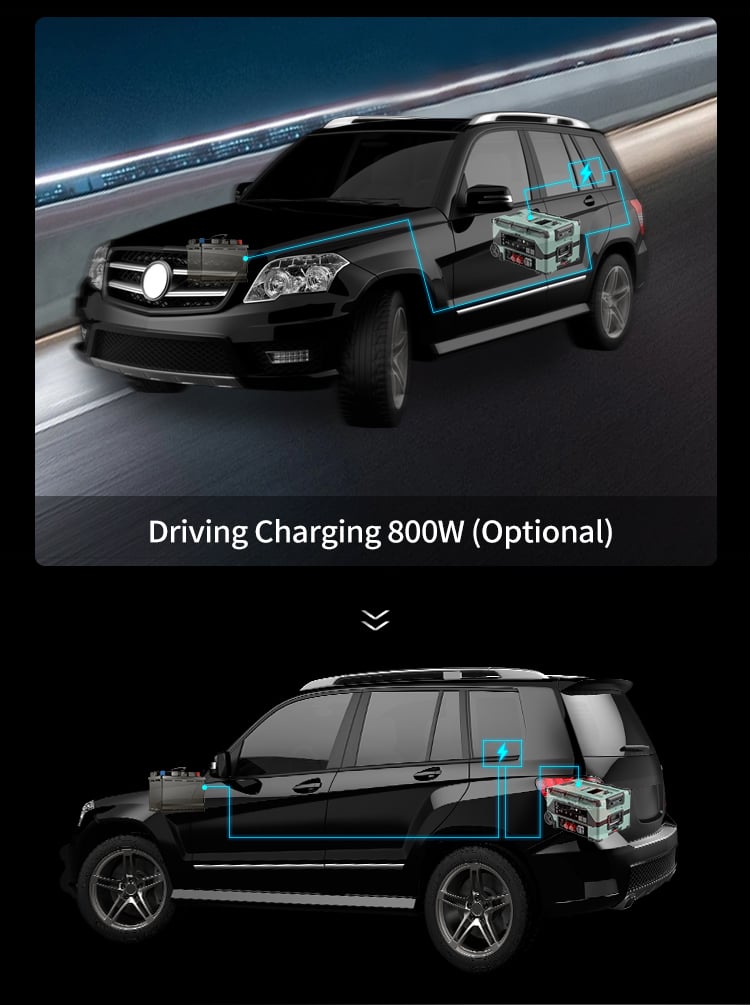

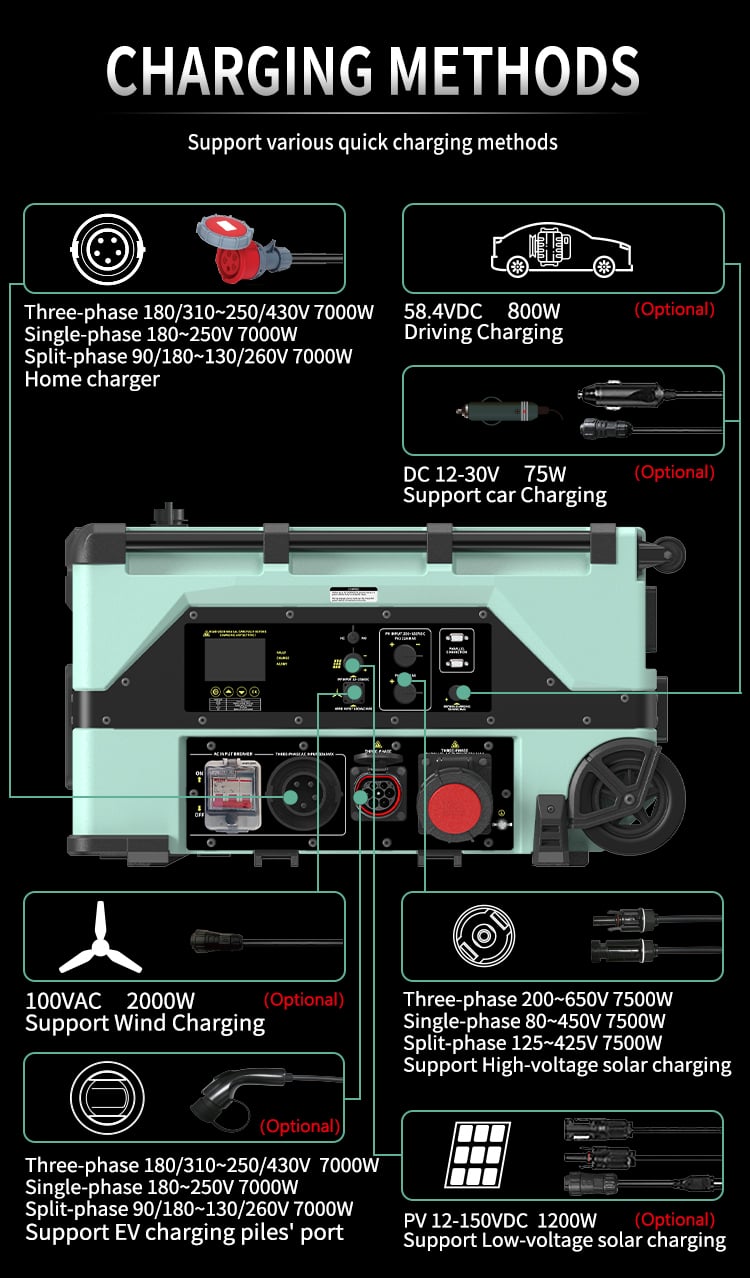

| Charging Methods | Utility, HV solar, LV solar, EV charger, driving car, AC generator, wind turbine |
| Warranty | 5 years |

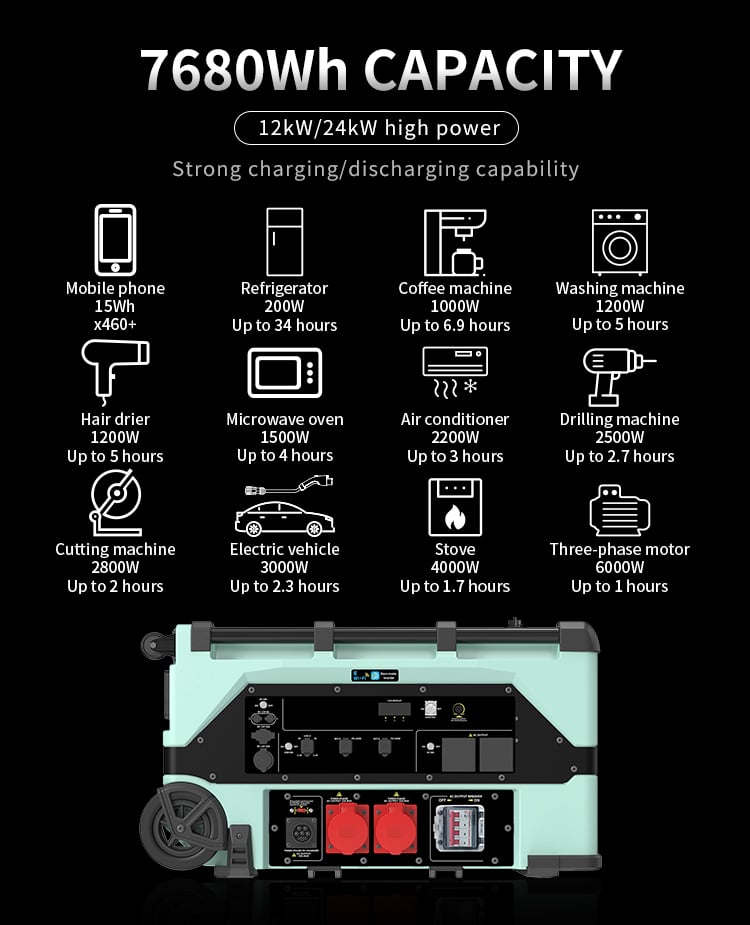

Estimated Usage Time
Estimated runtimes below are calculated from the battery capacity of 7,680 Wh at 90% inverter efficiency. Actual runtime varies with the load, temperature and battery condition.
Household Appliances
| Appliance | Power | Estimated Runtime |
|---|---|---|
| LED Light Bulb | 10 W | 691 h 12 min |
| Wi-Fi Router | 10 W | 691 h 12 min |
| Smartphone Charger | 20 W | 345 h 36 min |
| Laptop | 60 W | 115 h 12 min |
| Mini Fridge | 60 W | 115 h 12 min |
| LED TV (43") | 100 W | 69 h 7 min |
| CPAP Machine | 40 W | 172 h 48 min |
| Microwave Oven | 1000 W | 6 h 55 min |
Outdoor & Jobsite Equipment
| Appliance | Power | Estimated Runtime |
|---|---|---|
| Camping Lights | 20 W | 345 h 36 min |
| Portable Speaker | 20 W | 345 h 36 min |
| Car Refrigerator | 50 W | 138 h 14 min |
| Electric Fan | 30 W | 230 h 24 min |
| Drone Battery Charger | 80 W | 86 h 24 min |
| Power Drill | 800 W | 8 h 38 min |
| Electric Grill | 1200 W | 5 h 46 min |
| Portable Air Conditioner | 1000 W | 6 h 55 min |
Product Detail

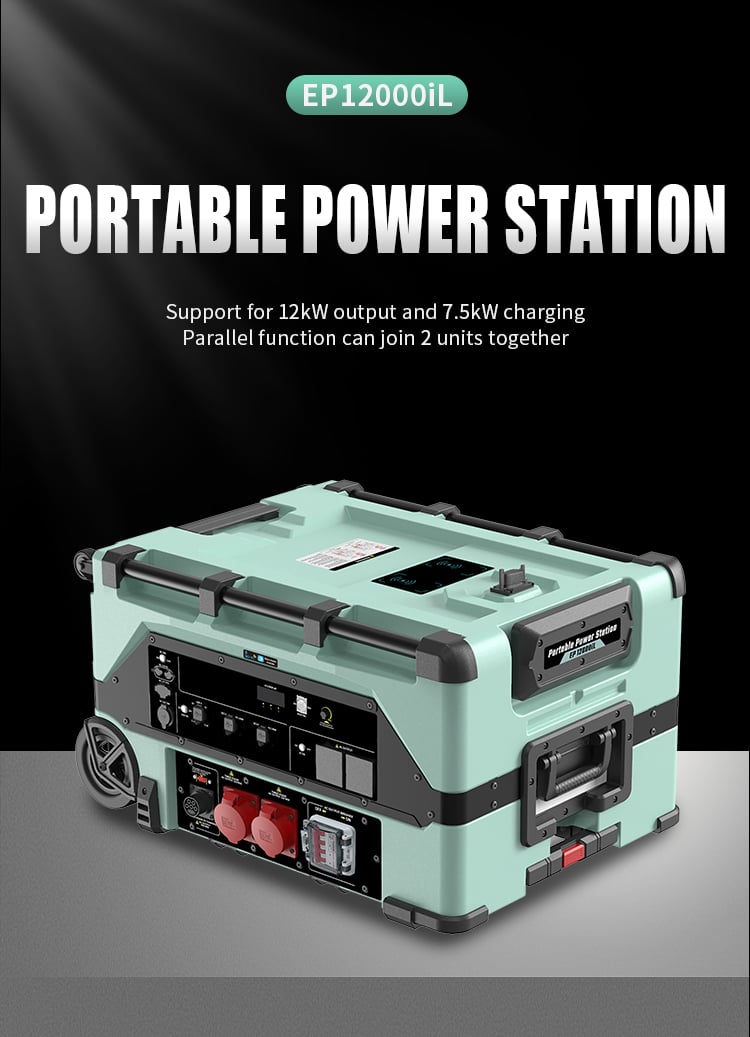

The EP12000iL is a flagship high-power mobile LiFePO4 power station delivering 12000VA rated power, 24000VA peak power, with 7680Wh battery capacity. It supports continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split-phase, meeting high-power equipment needs.

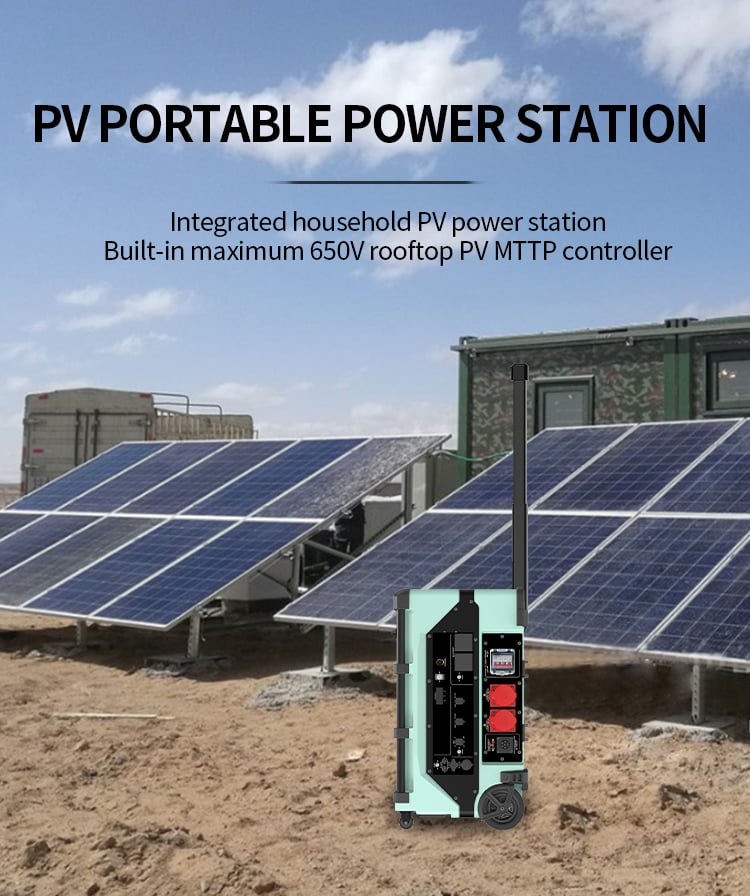

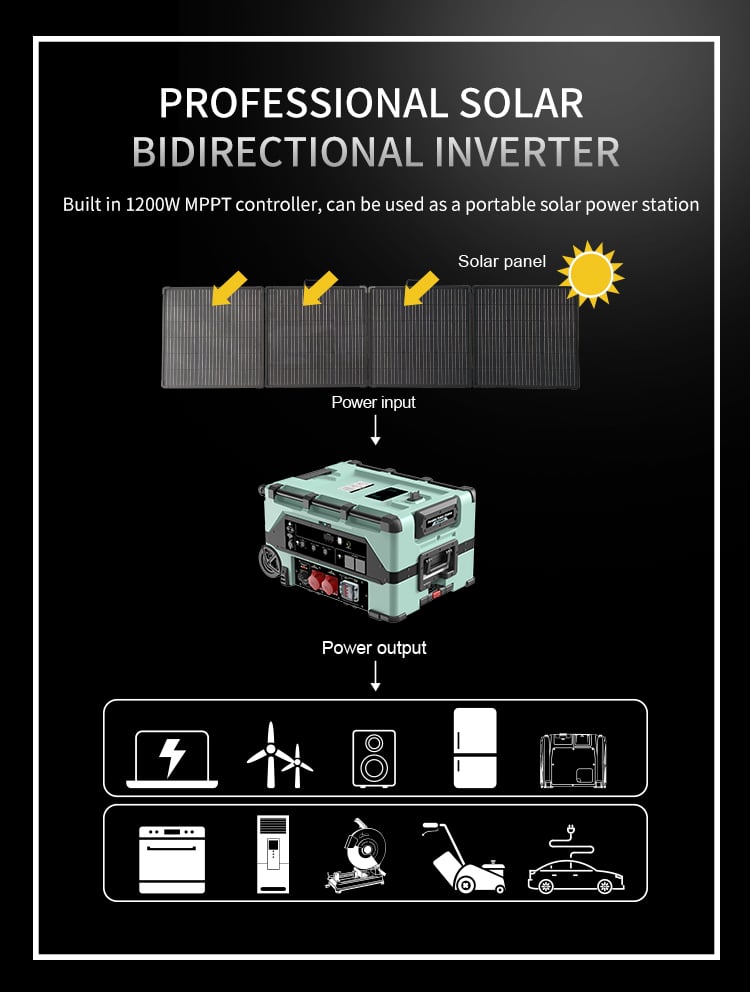

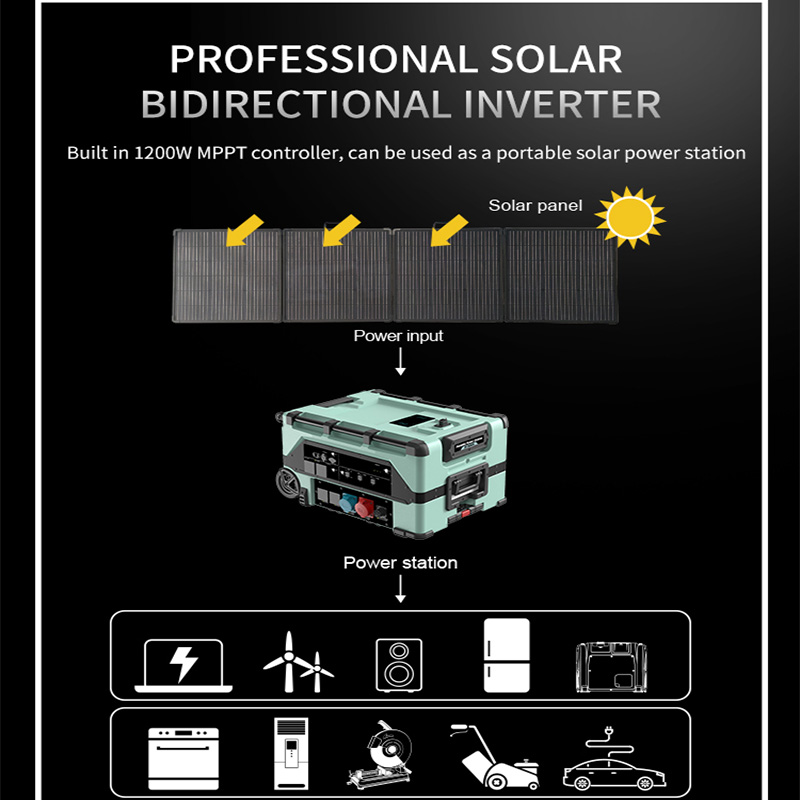

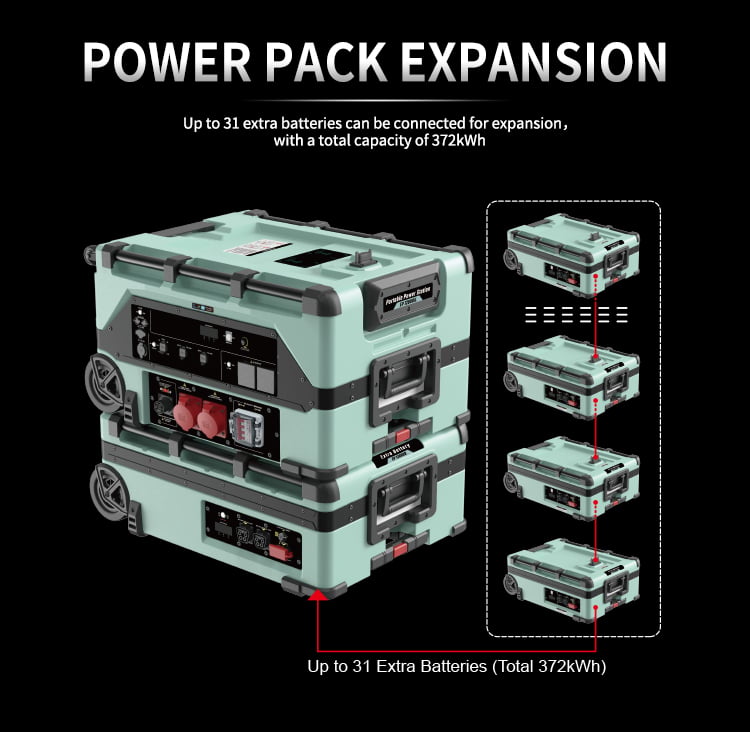

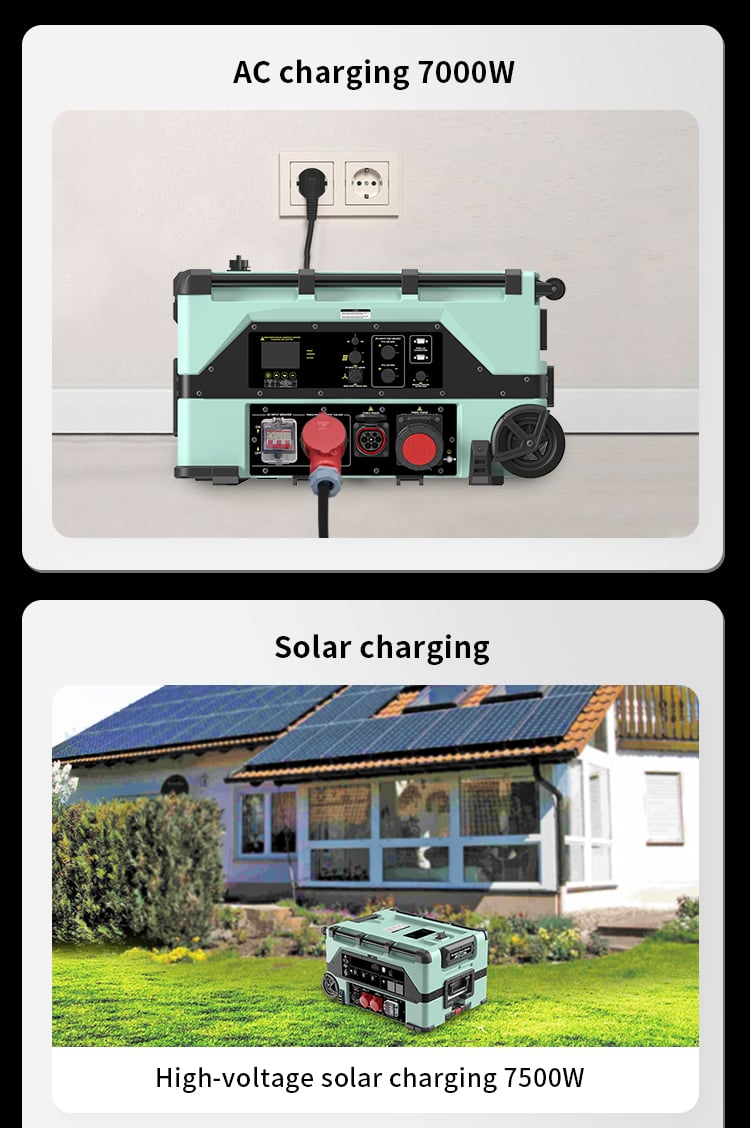

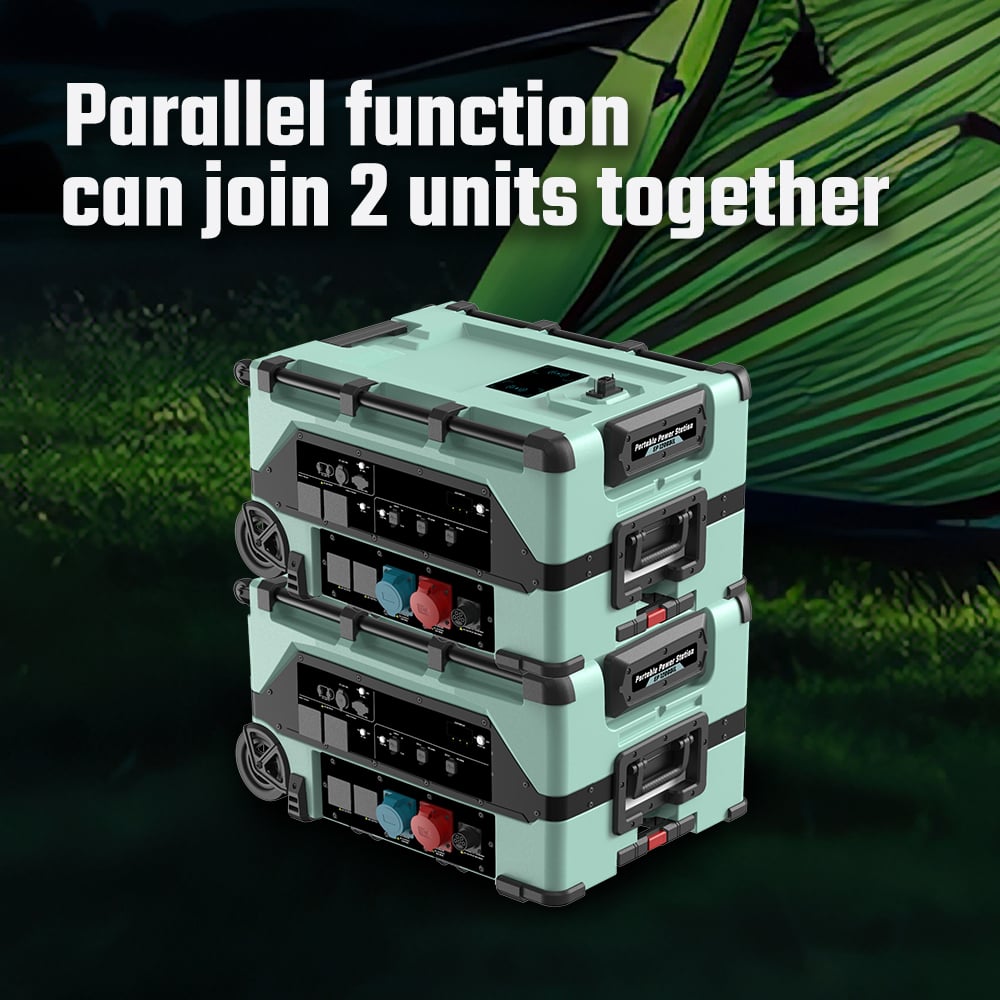

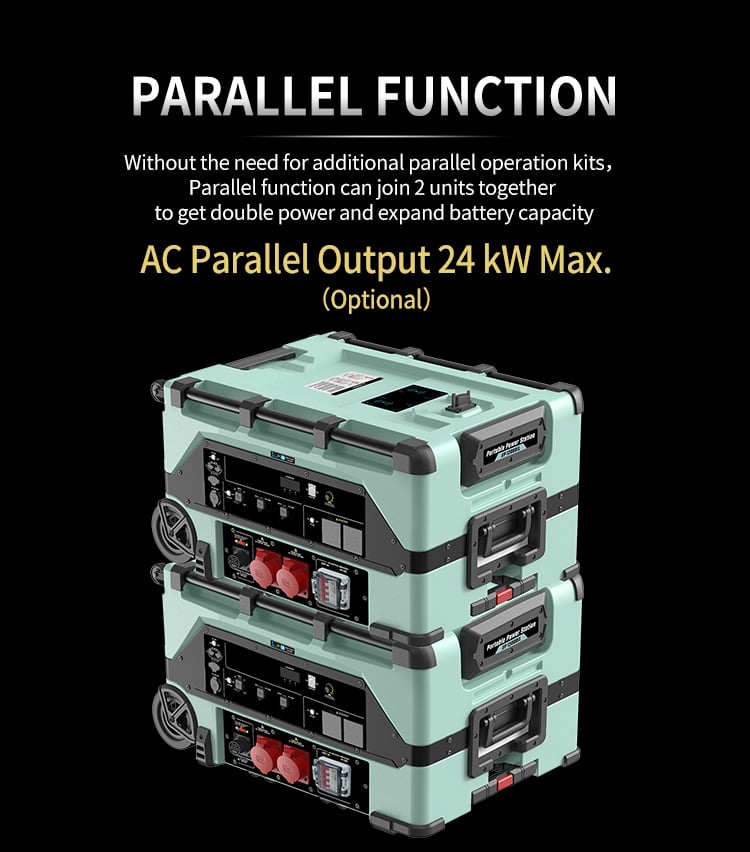

Up to 31 extra batteries can be stacked, expanding to 372kWh. The main unit supports stacking and parallel continuous output of 24kW. Built-in electric vehicle charger can replace a 22kW charging station. Supports utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine charging, fully charged in 70 minutes.
Why Choose EP12000iL?
- Flagship output: 12000VA rated and 24000VA peak power with a 7680Wh LiFePO4 battery.
- One unit covers 12kW three-phase, 11kW single-phase and 10kW split-phase AC for high-power equipment and household loads.
- Built-in 22kW EV charger and a 70-minute full charge keep the unit ready between tasks.
- Stackable expansion up to 372kWh supports long, power-hungry operations.
Who Is the EP12000iL Designed For?
- Construction sites and workshops running high-power electric tools, electrical machinery and air conditioners.
- Households and small facilities that need whole-building backup across split-phase, single-phase or three-phase wiring.
- EV owners who need fast on-site emergency charging up to 22kW.
- Buyers who need days of runtime from one expandable system.
Frequently Asked Questions
What output modes does the EP12000iL support?
It delivers continuous 12kW three-phase AC, 11kW single-phase AC and 10kW split-phase AC, with 12000VA rated and 24000VA peak power from a 7680Wh battery.
How much capacity can be added?
The stackable design supports expansion up to 372kWh with extra battery packs, enough for multi-day or high-load operations.
How long does a full charge take?
A full charge takes about 70 minutes, and the built-in EV charger supports up to 22kW vehicle charging.
